3GN(3QGB)系列三螺杆泵
关键词:
分类:
关键词： 3GN(3QGB)系列三螺杆泵
电话:
详细信息
概述
三螺杆泵是一种容积式泵，具有结构简单，体积小，允许高转速，平稳可靠，压力脉动小，流量积小，允许高转速，平稳可靠，压力脉动小，流量螺杆啮合的原理，依靠旋转的螺杆在泵套内相互啮合，把输送的介质吸入并封闭在啮合腔内，沿螺杆轴向匀速的推向排出口以及在排出口形成稳定的压力。
三螺杆泵仅适合于常温下输送不含固体颗粒的润滑性液体，可作为一般输送泵，液压传动装置中的供压泵。公司经过多年研究开发的3QGB系列保温高黏度三螺杆泵，是在三螺杆泵的基础_上对螺杆与泵套之间的配合和主螺杆与从螺杆之间的配合进行优化，使其可以输送高温、高黏度的介质。
3QGB系列保温高黏度三螺杆泵主要用于输送高黏度的润滑性液体，常作为沥青、重燃油、重齿轮油、重柴油的输送泵，该泵内部设有保温腔室与保温通道，允许气体或液体作为热载体，最高工作温度≤350C。高黏度介质一般通过加温降黏度后输送，输送黏度-般为3.0~ 760mm/s。
我公司3QGB系列保温高黏度三螺杆泵型号从进出口径DN40到DN300，流量2.8m/h到300m/h各种型号齐全，可满足不同客户的需求。

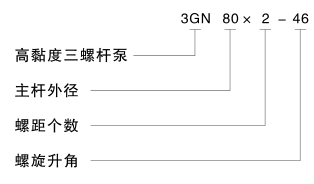

型式代号
订货应提供如下数据:
·介质的特性(温度、腐蚀等)
·工作温度下介质的黏度
·泵的进出口压力
·泵的工作流量
·泵的安装型式
·配套要求
选泵要点：根据油品的黏度选择适当的泵转速，以保证泵的NPSHR能满足用户的实际吸入条件。介质黏度大于760 mm'/s时，请与我厂联系，我厂帮助用户选泵。
三螺杆泵配套部件BJ643H系列气动保温三通阀
根据沥青高黏度的特性，公司从实际情况出发，在现有阀门的基础上，吸收国内外先进思想，研制开发出了用于输送高温沥青的BJ643H系列气动保温三通阀，以大幅提高我国沥青拌和设备沥青系统的生产效率
BJ643H系列气动保温三通阀连接结构采用法兰连接，阀体材料为铸钢。阀芯为铝合金材料，在使用过程中阀芯会根据阀体不锈钢密封面做自动调整修复,从而延长使用寿命。气缸和活塞都是按照阀门参数设计定做，保证阀门能最佳的开启和关闭，进一步延长使用寿命。立柱及阀杆材质为不锈钢，保证阀门在恶劣的环境下不被锈蚀，可正常使用。活塞杆上安装的弹簧不仅保证了阀门在0.3MPa到1.0MPa压力之间的使用，也起到了缓冲作用，保护了阀芯和活塞，同时在气缸失气的情况下，可以封住出油回路。
BJ643H系列气动保温三通阀利用活塞在气缸中形.成两个密封腔，通过两个密封腔的压力差达到阀门的开启和关闭，并且在气缸的上下盖配有限位开关，不仅保证了阀芯的位移，也实现了自动化控制。

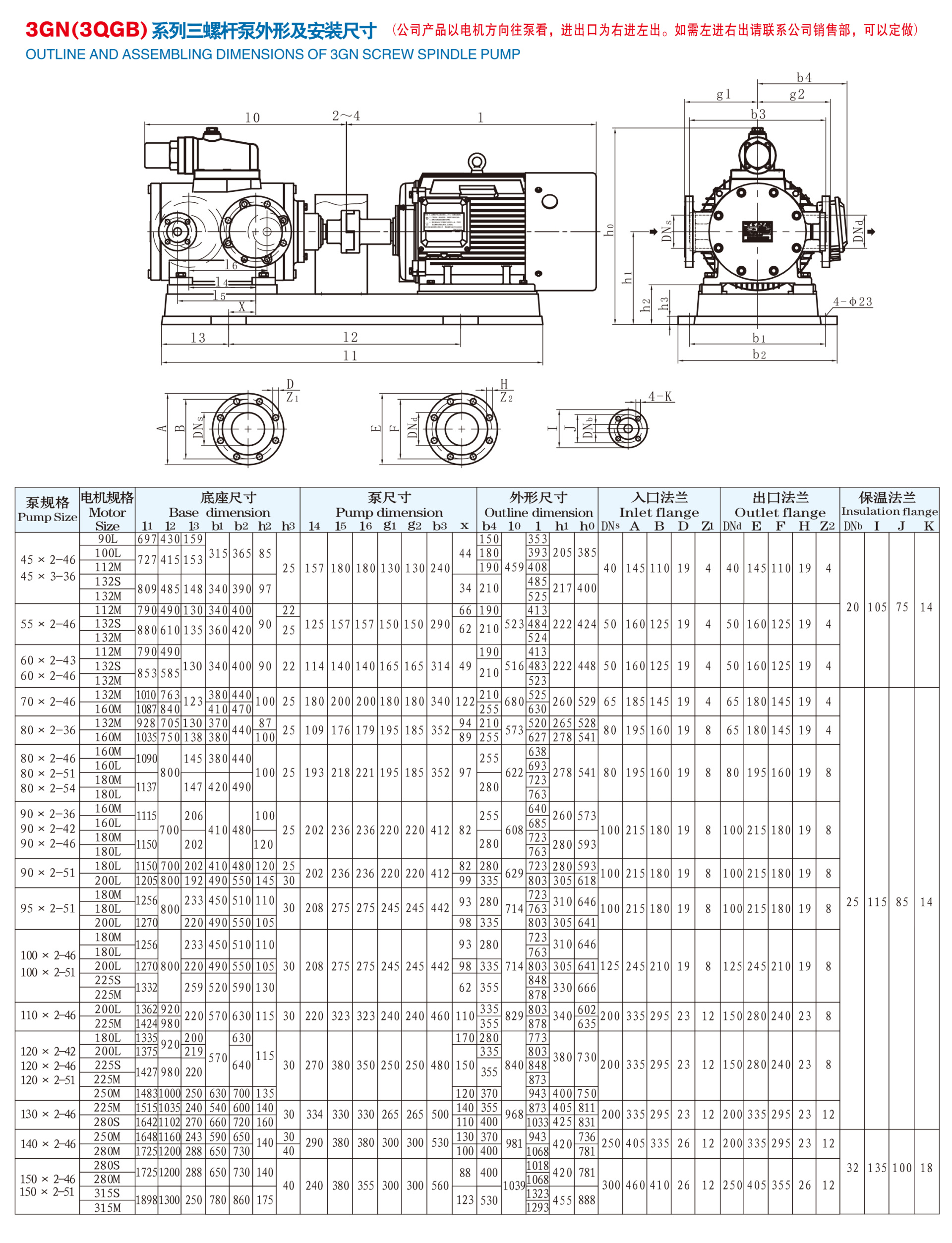

BJ643H系列气动保温三通阀外形及安装尺寸
3GN(3QGB)系列三螺杆泵基本技术参数表
| 泵规格 Pump size | 流量Flow rate | 压力 Pressure MPa | 转速 Rotate speed r/min | 功 率 P ow e r k W | 必需汽蚀余量 NPSHr m | 电机规格 Motor size | ||
| m³/h | L/min | sh轴功率wer | Mo机功wer | |||||
45×3-36 | 2.99 | 49.89 | 0.6 |
950 | 0.68 | 1.1 |
5 | 90L-6-B3 |
| 2.90 | 48.26 | 1.0 | 1.15 | 1.5 | 100L-6-B3 | |||
| 2.80 | 46.64 | 1.6 | 1.83 | 3 | 132S-6-B3 | |||
| 2.54 | 42.29 | 2.5 | 2.80 | 4 | 132M1-6-B3 | |||
| 4.57 | 76.16 | 0.6 |
1450 | 1.03 | 1.5 | 90L-4-B3 | ||
| 4.42 | 73.68 | 1.0 | 1.73 | 2.2 | 100L1-4-B3 | |||
| 4.27 | 71.20 | 1.6 | 2.80 | 3 | 100L2-4-B3 | |||
| 3.87 | 64.58 | 2.5 | 4.31 | 5.5 | 132S-4-B3 | |||
45×2-46 | 4.28 | 71.28 | 0.6 |
950 | 1.03 | 1.5 |
5 | 100L-6-B3 |
| 4.14 | 68.96 | 1.0 | 1.72 | 2.2 | 112M-6-B3 | |||
| 4.00 | 66.63 | 1.6 | 2.80 | 4 | 132M1-6-B3 | |||
| 6.53 | 108.8 | 0.6 |
1450 | 1.75 | 2.2 | 100L1-4-B3 | ||
| 6.32 | 105.3 | 1.0 | 2.61 | 3 | 100L2-4-B3 | |||
| 6.10 | 1017 | 1.6 | 3.75 | 5.5 | 132S-4-B3 | |||
55×2-46 | 7.81 | 130.2 | 0.6 |
950 | 1.42 | 2.2 |
5 | 112M-6-B3 |
| 7.55 | 125.9 | 1.0 | 2.53 | 4 | 132M1-6-B3 | |||
| 11.7 | 194.5 | 0.6 |
1450 | 2.74 | 4 | 112M-4-B3 | ||
| 11.3 | 188.3 | 1.0 | 4.24 | 5.5 | 132S-4-B3 | |||
60×2-43 | 8.60 | 143.4 | 0.6 | 950 | 2.06 | 3 |
5 | 132S-6-B3 |
| 8.27 | 137.9 | 1.0 | 3.18 | 4 | 132M1-6-B3 | |||
| 13.1 | 218.9 | 0.6 | 1450 | 3.15 | 4 | 112M-4-B3 | ||
| 12.6 | 210.5 | 1.0 | 4.86 | 7.5 | 132M-4-B3 | |||
60×2-46 | 9.89 | 164.8 | 0.6 |
950 | 2.33 | 3 |
5 | 132S-6-B3 |
| 9.73 | 162.2 | 0.8 | 2.91 | 4 | 132M1-6-B3 | |||
| 9.56 | 159.4 | 1.0 | 3.61 | 5.5 | 132M2-6-B3 | |||
| 15.1 | 251.6 | 0.6 | 1450 | 3.56 | 5.5 | 132S-4-B3 | ||
| 14.6 | 243.3 | 1.0 | 5.51 | 7.5 | 132M-4-B3 | |||
70×2-46 | 16.0 | 266.3 | 0.6 | 950 | 3.71 | 5.5 |
5 | 132M2-6-B3 |
| 15.5 | 258.9 | 1.0 | 5.73 | 7.5 | 160M-6-B3 | |||
| 24.4 | 406.4 | 0.6 | 1450 | 5.66 | 7.5 | 132M-4-B3 | ||
| 23.7 | 395.2 | 1.0 | 8.75 | 11 | 160M-4-B3 | |||
80×2-36 | 16.8 | 280.3 | 0.6 | 950 | 3.50 | 5.5 |
5.5 | 132M2-6-B3 |
| 16.3 | 271.2 | 1.0 | 5.41 | 7.5 | 160M-6-B3 | |||
| 25.7 | 4270 | 0.6 | 1450 | 5.43 | 7.5 | 132M-4-B3 | ||
| 24.8 | 413.9 | 1.0 | 8.51 | 11 | 160M-4-B3 | |||
80×2-46 | 24.0 | 400.1 | 0.6 | 950 | 5.52 | 7.5 |
5.5 | 160M-6-B3 |
| 23.4 | 389.5 | 1.0 | 8.60 | 11 | 160L-6-B3 | |||
| 36.6 | 610.3 | 0.6 | 1450 | 8.43 | 11 | 160M-4-B3 | ||
| 35.7 | 594.5 | 1.0 | 13.1 | 15 | 160L-4-B3 | |||
| 泵规格 Pump size | 流量Flow rate | 压力 Pressure MPa | 转速 Rotate speed r/min | 功率Power kW | 必需汽蚀余量 NPSHr m | 电机规格 Motor size | ||
| m³/h | L/mln | sh功ower | Mo电机功wer | |||||
80×2-51 | 29.1 | 485.3 | 0.6 | 950 | 6.31 | 11 |
5.5 | 160L-6-B3 |
| 27.9 | 464.9 | 1.0 | 10.5 | 15 | 180L-6-B3 | |||
| 44.0 | 733.6 | 0.6 | 1450 | 9.61 | 11 | 160M-4-B3 | ||
| 42.6 | 709.6 | 1.0 | 16.0 | 18.5 | 180M-4-B3 | |||
80×2-54 | 34.2 | 570 | 0.6 | 950 | 8.05 | 11 | 5.5 | 160L-6-B3 |
| 33.1 | 551 | 1.0 | 12.75 | 15 | 180L-6-B3 | |||
90×2-36 | 24.3 | 405 | 0.6 | 950 | 5.7 | 7.5 |
5.5 | 160M-6-B3 |
| 23.6 | 393.3 | 1.0 | 8.8 | 11 | 160L-6-B3 | |||
| 37.0 | 615.9 | 0.6 |
1450 | 8.42 | 11 | 160M-4-B3 | ||
| 36.1 | 602.4 | 1.0 | 13.0 | 15 | 160L-4-B3 | |||
90×2-42 | 28.3 | 470.9 | 0.6 | 950 | 6.55 | 11 |
5.5 | 160L-6-B3 |
| 27.5 | 457.6 | 1.0 | 10.2 | 15 | 180L-6-B3 | |||
| 43.1 | 718.8 | 0.6 | 1450 | 10.0 | 15 | 160L-4-B3 | ||
| 41.9 | 698.5 | 1.0 | 15.5 | 18.5 | 180M-4-B3 | |||
90×2-46 | 34.2 | 570.3 | 0.6 |
950 | 7.86 | 11 |
5.5 | 160L-6-B3 |
| 34.0 | 566.7 | 0.8 | 9.70 | 11 | 160L-6-B3 | |||
| 33.1 | 551.7 | 1.0 | 11.4 | 15 | 180L-6-B3 | |||
| 52.6 | 876.4 | 0.6 |
1450 | 12.0 | 15 | 160L-4-B3 | ||
| 52.0 | 866.0 | 0.8 | 14.9 | 18.5 | 180M-4-B3 | |||
| 51.4 | 856.1 | 1.0 | 18.6 | 22 | 180L-4-B3 | |||
90×2-51 | 42.8 | 713.3 | 0.6 | 950 | 9.9 | 15 | 5.5 | 180L-6-B3 |
| 41.6 | 693.3 | 1.0 | 16.0 | 18.5 | 200L1-6-B3 | |||
95×2-51 | 48.7 | 812.2 | 0.6 |
950 | 10.3 | 15 |
5.5 | 180L-6-B3 |
| 48.0 | 800.1 | 0.8 | 13.5 | 15 | 180L-6-B3 | |||
| 46.9 | 782.3 | 1.0 | 16.2 | 22 | 200L2-6-B3 | |||
| 72.7 | 1212 | 0.6 |
1450 | 16.1 | 18.5 | 180M-4-B3 | ||
| 72.0 | 1200 | 0.8 | 20.7 | 22 | 180L-4-B3 | |||
| 71.2 | 1187 | 1.0 | 25.8 | 30 | 200L-4-B3 | |||
100×2-46 | 48.7 | 812.2 | 0.6 |
950 | 10.8 | 15 |
5.5 | 180L-6-B3 |
| 48.0 | 800.1 | 0.8 | 13.3 | 15 | 180L-6-B3 | |||
| 46.9 | 782.3 | 1.0 | 16.7 | 22 | 200L2-6-B3 | |||
| 72.7 | 1212 | 0.6 |
1450 | 16.5 | 18.5 | 180M-4-B3 | ||
| 72.0 | 1200 | 0.8 | 20.4 | 22 | 180L-4-B3 | |||
| 71.2 | 1187 | 1.0 | 25.5 | 30 | 200L-4-B3 | |||
100×2-51 | 56.9 | 948.9 | 0.6 | 950 | 12.5 | 15 |
5.5 | 180L-6-B3 |
| 55.7 | 928.6 | 1.0 | 20.8 | 30 | 225M-6-B3 | |||
| 86.9 | 1448 | 0.6 | 1450 | 19.1 | 22 | 180L-4-B3 | ||
| 85.0 | 1417 | 1.0 | 31.8 | 37 | 225S-4-B3 | |||
| 泵规格 Pump size | 流量Flow rate | 压力 Pressure MPa | 转 速 Rotate speed r/min | 功率Power kW | 必需汽蚀余量 NPSHr m | 电机规格 Motor size | ||
| m³/h | L/mln | sh功表wer | 电机功率 Motor power | |||||
110×2-46 | 60.9 | 1015 | 0.6 |
950 | 13.7 | 18.5 |
5.5 | 200L1-6-B3 |
| 58.9 | 981.7 | 1.0 | 21.8 | 30 | 225M-6-B3 | |||
| 96.7 | 1611 | 0.6 |
1450 | 21.9 | 30 | 200L-4-B3 | ||
| 94.6 | 1577 | 1.0 | 33.9 | 45 | 225M-4-B3 | |||
120×2-43 | 67.9 | 1131 | 0.6 |
950 | 15.5 | 18.5 |
5.5 | 200L1-6-B3 |
| 66.7 | 1112 | 0.8 | 19.2 | 22 | 200L2-6-B3 | |||
| 65.4 | 1090 | 1.0 | 24.5 | 30 | 225M-6-B3 | |||
| 108 | 1802 | 0.6 |
1450 | 24.7 | 30 | 200L-4-B3 | ||
| 105 | 1760 | 1.0 | 38.2 | 45 | 225M-4-B3 | |||
120×2-46 | 79.6 | 1327 | 0.6 |
950 | 17.8 | 22 |
5.5 | 200L2-6-B3 |
| 77.2 | 1286 | 1.0 | 28.2 | 37 | 250M-6-B3 | |||
| 125 | 2101 | 0.6 |
1450 | 28.5 | 37 | 225S-4-B3 | ||
| 123 | 2059 | 1.0 | 44.1 | 55 | 250M-4-B3 | |||
120×2-51 | 91.9 | 1532 | 0.6 |
950 | 20.5 | 30 |
5.5 | 225M-6-B3 |
| 89.9 | 1498 | 1.0 | 32.8 | 37 | 250M-6-B3 | |||
| 153 | 2550 | 0.4 |
1450 | 20.2 | 22 | 180L-4-B3 | ||
| 146.5 | 2441 | 0.6 | 33.1 | 45 | 225M-4-B3 | |||
| 143.5 | 2390 | 1.0 | 48.0 | 55 | 250M-4-B3 | |||
130×2-46 | 77.8 | 1297 | 0.6 |
730 | 17.4 | 22 |
5.5 | 225M-8-B3 |
| 75.3 | 1256 | 1.0 | 27.5 | 37 | 280S-8-B3 | |||
| 101.3 | 1688 | 0.6 |
950 | 22.6 | 30 | 225M-6-B3 | ||
| 98.0 | 1634 | 1.0 | 35.8 | 45 | 280S-6-B3 | |||
140×2-46 | 100 | 1670 | 0.6 |
730 | 22.8 | 30 |
5.5 | 250M-8-B3 |
| 96.0 | 1603 | 1.0 | 36.5 | 45 | 280M-8-B3 | |||
| 128 | 2147 | 0.6 |
950 | 28.3 | 37 | 250M-6-B3 | ||
| 125 | 2093 | 1.0 | 44.8 | 55 | 280M-6-B3 | |||
150×2-46 | 121 | 2029 | 0.6 |
730 | 26.6 | 37 |
5.5 | 280S-8-B3 |
| 118 | 1984 | 1.0 | 41.8 | 55 | 315S-8-B3 | |||
| 158 | 2640 | 0.6 |
950 | 34.6 | 45 | 280S-6-B3 | ||
| 154 | 2582 | 1.0 | 54.5 | 75 | 315S-6-B3 | |||
150×2-51 | 145 | 2407 | 0.6 |
730 | 31.6 | 45 |
5.5 | 280M-8-B3 |
| 141 | 2355 | 1.0 | 49.7 | 75 | 315M-8-B3 | |||
| 188 | 3133 | 0.6 |
950 | 41.1 | 55 | 280M-6-B3 | ||
| 184 | 3065 | 1.0 | 64.7 | 75 | 315S-6-B3 | |||
